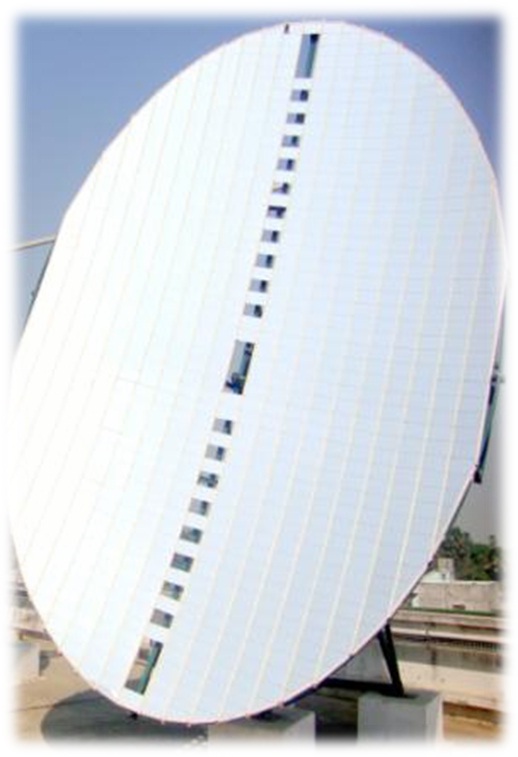

PARABOLIC CONCENTRATOR : |
Best roof top efficiency
Reflective surface: 16 sq.m.
Major axis: 5.3 m
minor axis: 3.8 m
Hot water: <= 170 Deg C
LP steam: <= 4 bar
Heat output: 5 kWth
Tracking
1st Axis: Automatic
2nd Axis: Manual (simplified)
|
|
Product Features
- PLC based control system for daily tracking with Auto-focus, De-focus and Re-focus facility
- Modular design, easy and safe O&M
- Concentration ratio of more than 100
- Solar grade mirrors: reflectivity up to 92% and 5 years guarantee
- Focus: Focus diameter - 200 mm, Receiver diameter - 406 mm
Policies
- Ministry of new and Renewable Energy provides subsidy on total collector area basis
- Under I.T laws, depreciation benefit of 80% is applicable for Solar Concentrator
- Carbon Credit can be availed
|
|
